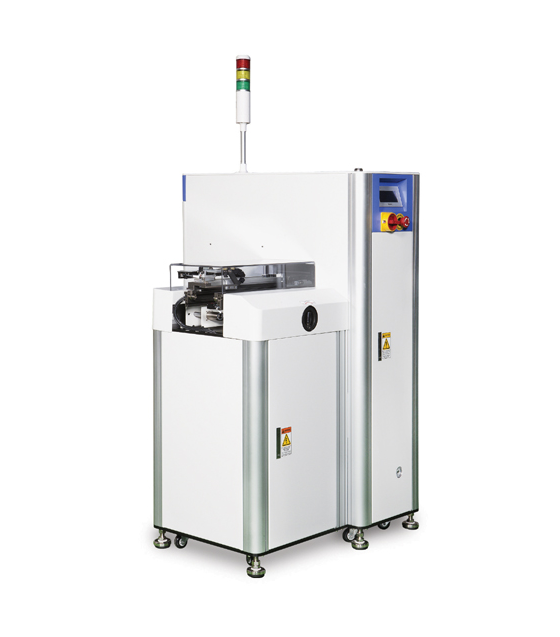

BOAT UNLOADER

Automatically stores LEAD FRAME, BGA BOARD, BOAT in the semiconductor prodcution

Character
  • SMEMA interface
    Touch screen operation
    LED tower light
    High precision control by servo motor
    SUS frame in magazine contact part
    BOAT(PCB) jam detection available
    No scratch rail working with BOAT (PCB)
    Stable magazine clamping
    Selectable magazine size
Option
  • Cover design
    SUS device for clean room (Non-painting)
    Dual lane
    CE type
    RS-485 Communication
Product inquiry

MODEL BOAT TYPE Max_Magazine(LxWxH) Min_Magazine(LxWxH) DIMENSION(LxWxH) POWER AIR(MPa) WEIGHT(Kg)
ABU-B20 AL, SUS 300X100X200 160X40X100 800X1170X1300 0.5kVA 0.5±0.1 220
