SMT&반도체

SMT&반도체

좌, 우로 스크롤 하시면 전체 이미지를 확인하실 수 있습니다.

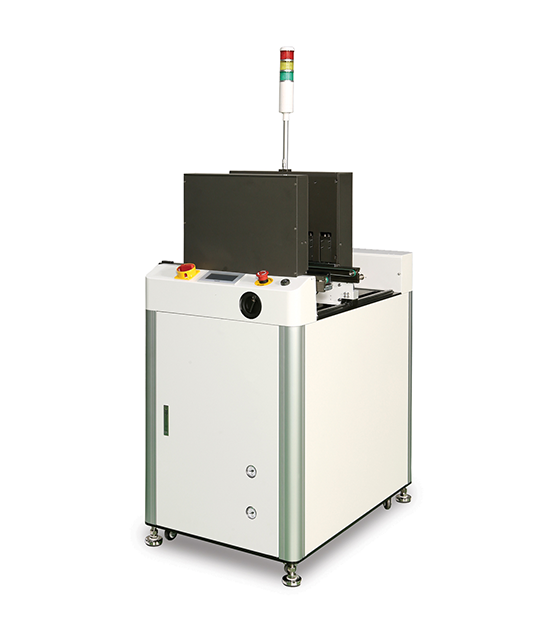

DESTACKER

특징
  • SMEMA interface
    Precision hand crank width adjust system
    pneumatic release and stack relief assembly
    Adjustable board thickness settings
    Pass through mode
옵션
  • 자동 폭 조정
    Touch screen 조작
    Safety full cover
    Dual lane
    CE type
    RS-485 Communication
제품문의

MODEL TYPE Max_PCB(LxW) Min_PCB(LxW) DIMENSION(LxWxH) POWER AIR(MPa) WEIGHT(Kg)
ADS-50S S 330X250 50X50 550X710X1215 0.3kVA 0.5±0.1 190
ADS-50Y Y 440X330 50X50 550X790X1215 0.3kVA 0.5±0.1 210
ADS-50L L 530X375 50X50 650X835X1215 0.3kVA 0.5±0.1 220
ADS-50X XL 530X460 50X50 650X920X1215 0.3kVA 0.5±0.1 230
ADS-502X 2XL 610X460 50X50 750X920X1215 0.3kVA 0.5±0.1 260
