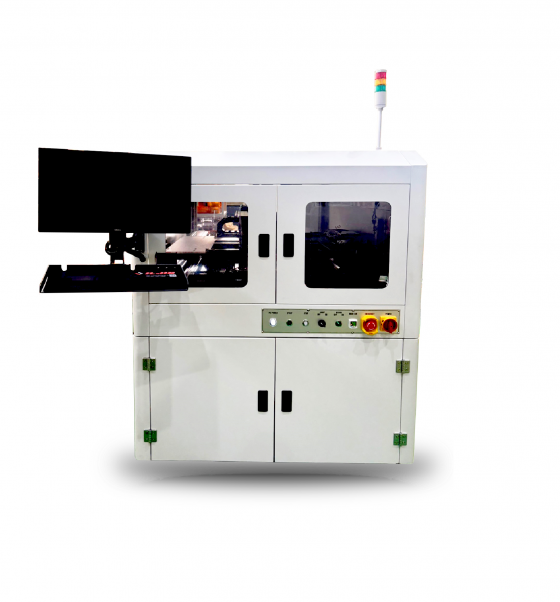

LASER MAKING MACHINE

특징
  • Edge belt conveyor
    Auto width adjustment
    Vision camera system
    Cognex barcode reader
    Panasonic laser (CO2, FAYb)
    SMEMA interface
    Tower light with buzzer
옵션
  • Different belt type available
    Speed control
    Separate dust collector
    RS-485 Communication
제품문의

MODEL TYPE Max_PCB(LxW) Min_PCB(LxW) DIMENSION(LxWxH) POWER AIR(MPa) WEIGHT(Kg)
ALM-100S S 330X250 60X60 825X1090X1510 2kVA 0.5±0.1 600
ALM-100X XL 530X460 60X60 1025X1300X1510 2kVA 0.5±0.1 850
